Set screws may be small, but they play an outsized role in securing components across industrial, mechanical, and aerospace applications. Their performance—and the reliability of the system they support—depends heavily on the type of locking mechanism selected. The right locking feature prevents loosening, reduces maintenance, improves safety, and ensures long-term stability under load and vibration.

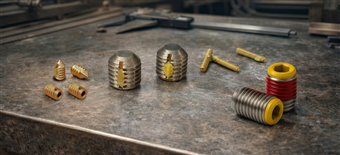

Below is a comprehensive, professional overview of the most common locking mechanisms for set screws, including the increasingly popular plastic strip locking mechanism, and how to determine the best option for your application.

1) Standard (Non-Locking) Set Screws

Standard set screws rely solely on thread friction and the geometry of the point type (cup, cone, flat, etc.) to hold position.

Advantages

• Cost-effective
• Widely available
• Suitable for static assemblies with minimal vibration

Limitations

• Most prone to loosening under vibration
• May require an additional locking method for dynamic equipment

2) Nylon Patch (Pre-Applied Coating)

A nylon or polymer patch creates prevailing torque by adding friction to the screw’s threads.

Advantages

• Excellent vibration resistance
• Clean, pre-applied solution—no additional hardware
• Suitable for high-volume production
• Partially reusable

Common Uses

• Industrial machinery
• Electronics
• Assemblies with moderate vibration

Considerations

• Increased installation torque
• Not ideal for high-temperature environments

3) Nylon Pellet (Radially Inserted Locking Element)

A nylon pellet is inserted into a drilled hole in the screw, providing consistent resistance throughout the tightening and adjustment process.

Advantages

• Highly repeatable and adjustable
• Does not damage mating threads
• Provides reliable prevailing torque

Common Uses

• Precision assemblies
• Valves and instrumentation
• Adjustable mechanisms

Considerations

• Higher cost than standard or patch screws
• Lower surface coverage than a full patch, but more consistent for repeated adjustments

4) Strip Locking Mechanism (Plastic Locking Strip)

The strip locking mechanism incorporates a plastic strip—typically made from engineered polymers—inserted longitudinally along the screw threads. As the set screw is installed, the strip compresses and creates continuous friction between the screw and mating threads.

Advantages

• Provides strong, consistent prevailing torque without adhesives
• Fully polymer-based, offering smooth adjustment without damaging mating threads
• More thermally stable than nylon patches in moderate heat ranges
• Highly reusable—strip returns to form after tightening
• Excellent for assemblies requiring frequent adjustments

Common Uses

• Aerospace and defense hardware
• Instrumentation and metering systems
• High-vibration environments
• Applications where nylon pellets do not provide enough surface engagement

Considerations

• Higher cost compared to standard locking features
• Requires precise installation during manufacturing
• Temperature limitations depend on polymer grade

5) Mechanical Locking Through Geometry (Cup, Cone, Knurled, Serrated)

These locking mechanisms rely on the point shape to physically engage the mating surface.

Point Types

• Cup Point: Balanced holding strength; most common
• Cone Point: Maximum penetration for secure engagement
• Knurled or Serrated Cup: Increased bite for vibration resistance

Advantages

• Strong mechanical holding force
• Ideal for torque transfer applications

Common Uses

• Collars, pulleys, gears
• Power transmission components

Considerations

• Can damage softer shafts
• Not ideal when frequent adjustments are needed

6) Chemical Threadlockers (Liquid Adhesives)

Liquid anaerobic adhesives cure between the threads, creating a chemical bond.

Advantages

• Strong resistance to vibration
• Seals threads against corrosion
• Available in low-, medium-, and high-strength formulas

Common Uses

• Field repairs
• Applications where pre-applied locking features are unavailable

Considerations

• Adds steps to the assembly process
• Requires curing time
• Less repeatable than pre-applied locking features

Choosing the Right Locking Mechanism

Consider Vibration Level

• High vibration: nylon patch, plastic strip, nylon pellet
• Low vibration: standard set screws may suffice

Adjustment Frequency

• Frequent adjustments: pellet or plastic strip
• Permanent setting: threadlocker or cone point

Material Compatibility

• Soft shafts: avoid aggressive mechanical points

Environmental Factors

• Temperature, chemical exposure, and installation torque all influence selection

Conclusion

Set screws may be fundamental components, but choosing the right locking mechanism is essential for ensuring performance, preventing loosening, and protecting critical assemblies. From nylon patches to plastic strip locking systems, each option serves a specific purpose—and selecting correctly can dramatically improve reliability and reduce long-term maintenance.

Most people are familiar with the infamous failure of the Mars Climate Orbiter, often citing the metric-to-imperial unit conversion error as the sole culprit. While that indeed played a critical role, a lesser-known contributing factor was something far smaller, yet equally devastating: loosened socket set screws in the guidance modules.

Imagine a journey spanning 140 million miles. Over that immense distance and extended timeframe, improper torquing and the absence of a crucial locking compound allowed these tiny set screws to gradually back out. This seemingly minor shift had major consequences, subtly altering the alignment of critical sensors within the orbiter's navigation system.

Those minute misalignments, compounded by the already flawed navigation data, meant that NASA's course corrections were fatally inaccurate. The result? The Mars Climate Orbiter entered the Martian atmosphere at a dangerously low altitude and was tragically destroyed, leading to a loss of $327 million and invaluable scientific opportunity.

🔧 The Lesson Learned: Small Components, Monumental Impact

This incident serves as a stark reminder: even the smallest components, like set screws, can have monumental implications. When they're responsible for maintaining precision alignment in a sophisticated navigation system traversing vast interstellar distances, their integrity is non-negotiable. "Good enough" simply isn't an option.

For applications in aerospace, defense, medical devices, or any field demanding absolute precision manufacturing, the quality and reliability of every single component are paramount. Specifications matter. Quality control matters. And ultimately, mission success depends on it.

At SESCO Precision, we understand the critical role that precision fasteners play in high-stakes environments. We specialize in manufacturing and supplying socket set screws with locking elements that meet the most stringent specifications, ensuring the reliability and performance your projects demand.

📩 Don't let a small component lead to a big problem.

If you're seeking a reliable partner for high-quality socket set screws and other precision fasteners, let's connect. Your mission's success is our priority.

Satellites are the workhorses of the modern world, orbiting Earth at incredible speeds of over 17,000 mph. They perform a vast array of critical functions, from enabling GPS navigation and global communications to monitoring weather patterns and Earth's climate. In this high-stakes environment, where every variable is meticulously calculated, precision is not just an advantage—it’s a fundamental requirement. A sensor shifting by even a fraction of a millimeter can throw off data, disrupt communication signals, or cause the satellite to deviate from its intended orbital path.

The Silent Guardians of Orbital Integrity

While we focus on the complex payloads and sophisticated technology, the reliability of a satellite often depends on its smallest components. This is where set screws play an indispensable, yet often overlooked, role. These compact fasteners are the unseen guardians of a satellite's precision, securing critical components like:

• Sensors: Ensuring they remain in perfect alignment to collect accurate data, from atmospheric measurements to high-resolution imagery.
• Antennas: Maintaining the exact orientation needed for stable communication links with ground stations.
• Alignment Modules: Locking in place the internal parts that keep the entire spacecraft oriented correctly in space.

The challenge is immense. Once a satellite is deployed, it's virtually impossible to service. A set screw must withstand years, and often decades, of brutal conditions. It must endure the violent vibration of a rocket launch, the extreme thermal cycling between the sunlit and dark sides of Earth, and the unique challenges of microgravity, all while preventing even the tiniest of movements.

Engineered for Space, Built for Confidence

At SESCO Precision, we understand that a standard fastener cannot meet the demands of space. Our set screws are not just manufactured; they are engineered for survival in the orbital environment. This dedication to reliability begins with material science. We use specialized, high-performance materials that can withstand the intense radiation and extreme temperature fluctuations of space without degrading or outgassing, which could contaminate sensitive instruments.

Our manufacturing process incorporates advanced features to ensure mission success:

• Special Coatings: We apply specific coatings that enhance durability and prevent corrosion, which can be caused by atomic oxygen in low Earth orbit.
• Vibration-Resistant Features: Our set screws incorporate features designed to create a secure, permanent lock. This is critical for preventing loosening during launch and throughout the satellite's long lifespan.
• Tight Tolerances: Every screw is machined to exacting standards, ensuring a perfect fit that minimizes any potential for movement.

In the unforgiving vacuum of space, there are no second chances. The smallest fastener must be mission-ready from the moment of launch. The success of a multi-million-dollar satellite mission and the vital services it provides hinges on the unwavering performance of every component, no matter how small. With SESCO, our hardware doesn't just hold parts together; it holds the mission together, delivering the confidence needed to reach for the stars. Learn more about fastener manufacturing. Have questions? Do not hesitate to reach out to us today!
